 PLATULAR/Tube and plate Exchanger |
| - Technical characteristics |
Small or large capacity
Single- or multi-circuit
Multi-stream
Optimisation of each circuit
Horizontal, vertical or inclined
Construction: fully welded or opening on both circuits |
|
|
| - Several types |
Type "XS" exchanger |
Type "IXASP" exchanger |
Type "UP" or "DIP" exchanger |
Type "IXASP" Multi-Circuit exchanger |
|
|
| ASET/Tube exchangers |
| - Products and services |
From 100 mm to 3 metres in diameter, under vacuum or pressure up to 400 bar, made of steel or
other materials, (stainless steel, copper alloys, titanium, etc.)
ASET can propose an exchanger solution suited to a wide range of operating conditions. |
| - Specific or standard-range tube exchangers |
U tubes
for liquid
straight tubes
for gas
fixed or removable bundles
with or without regulation |
| - Several types |
|
Air coolants with 90mⓒ~ separator |
1305 kW electric heater with IP55 |
610 mⓒ~ vertical boiler |
Helium coolants |
|
|
| - Technical characteristics and models |
An extensive range
47 sizes of plate with 2 different angles
Single-stream exchangers in most cases
Tube diameters from 25 mm to 500 mm
Design pressure up to 25 bar
Plates: AISI 304, 316, Titanium, Hastelloy®, etc.
Gaskets: Nitrile,EPDM,Viton,etc..
Frames: for industrial and food processing uses
The best technical solution
Inflow area
Little pressure drop
No dead zone
Lateral distribution
Exchange area
Optimum use of pressure drop
High turbulence
Very high exchange coefficient
|
 |
| - Technical characteristics and models |

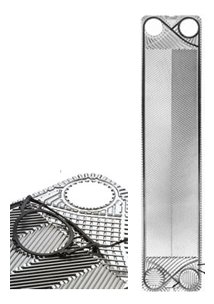

Hooking system
Automatic centring between plates
Clipped or bonded gaskets
Deep gasket groove
Completely flush fitting
Hardwearing gaskets
Ease of installation
Automatic centring between plates
The different types of plate
A range of double-wall plates
A range of free-flow plates
A range of laser-welded plates (boxes)
The different types of frame
A range of industrial frames
A range of standardised HVAC frames
A range of entirely stainless steel frames for contact with food |
 |
|
|
|
|
|
